Performance advantages of enameled copper flat wire Q (ZY/XY) (EI/AIWB/200)
Excellent conductivity and thermal stability
Scratch resistance
Solvent resistance
Winding into a wire resistor has good heat dissipation performance
High magnetic field efficiency
Performance parameters of enameled copper flat wire Q (ZY/XY) (EI/AIWB/200)
| Thermal level | Model | Specifications range | Standard | |||||
| code | level | name | model | mm² | IEC | GB/T | NEMA | JIS |
| B | 130 | 130 grade polyester enameled copper flat wire | QZ B-x/130 | 1.5mm²-15mm²1.2:1≤Width to width ratio≤8:1 | 60317 | 7095.7 | * | |
| F | 155 | 155 grade polyester enameled copper flat wire | QZ B-x/155 | 1.5mm²-15mm²1.2:1≤Width to width ratio≤8:1 | 60317-16 | 7095.3 | * | |
| H | 180 | 180 grade polyester imine enameled copper flat wire | QZYB-x/180 | 1.5mm²-15mm²1.2:1≤Width to width ratio≤8:1 | 60317-28 | 7095.4 | * | |
| C | 200/220 | 200 grade polyester imide/polyamide imide composite enameled copper flat wire 220 grade polyamide imide enameled copper flat wire | Q(ZY/XY)B-x/200QXYB-X/200 | 1.5mm²-15mm²1.2:1≤Width to width ratio≤8:1 | 60317-29 | 7095.6 | MW36-C | * |
| C | 240 | 240 grade polyimide enameled copper flat wire | QYB-x/240 | 1.5mm²-15mm²1.2:1≤Width to width ratio≤8:1 | 60317-47 | 7095.5 | MW20-C | * |

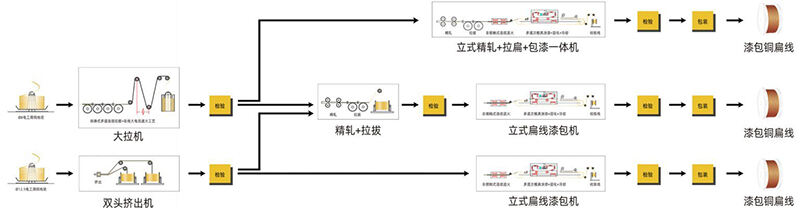

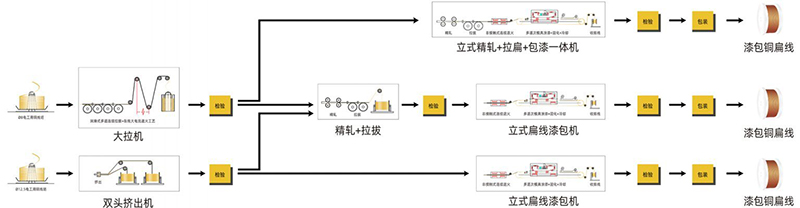

Production process flow of enameled copper flat wire Q (ZY/XY) (EI/AIWB/200)
Standard for execution of enameled copper flat wire Q (ZY/XY) (EI/AIWB/200)
GB/T 6109.4, GB/T6109.10, GB/T6109.23, JIS-C3202, IEC60317-19, IEC60317-21, etc
